Amorphous Magnetic Core C Cores E Cores for Solar Inverter Reator
Email: info@jchncores.com
Product Description
Amorphous Magnetic Core C Cores E Cores for Solar Inverter Reator
Typical Application:
- High-frequency Output filter reactor of power supply
- Rail transit auxiliary power transformer
- Intermediate frequency transformer
- Inductor of new energy vehicles
- PV inverter、energy storage step up inverter inductor
- Power transformer
- Hall sensor
- Antenna
Performance Characteristics:
- Low loss,reduce temperature-rise
- High saturation magnetic induction, reduce volume
- Excellent temperature stability
- For easy assembling
- Open gap, good for anti-DC-bias saturation
- Customized shape suitable for more applications
- Special anti-rust treatment
- Block shape,suitable assembly with other materials
|

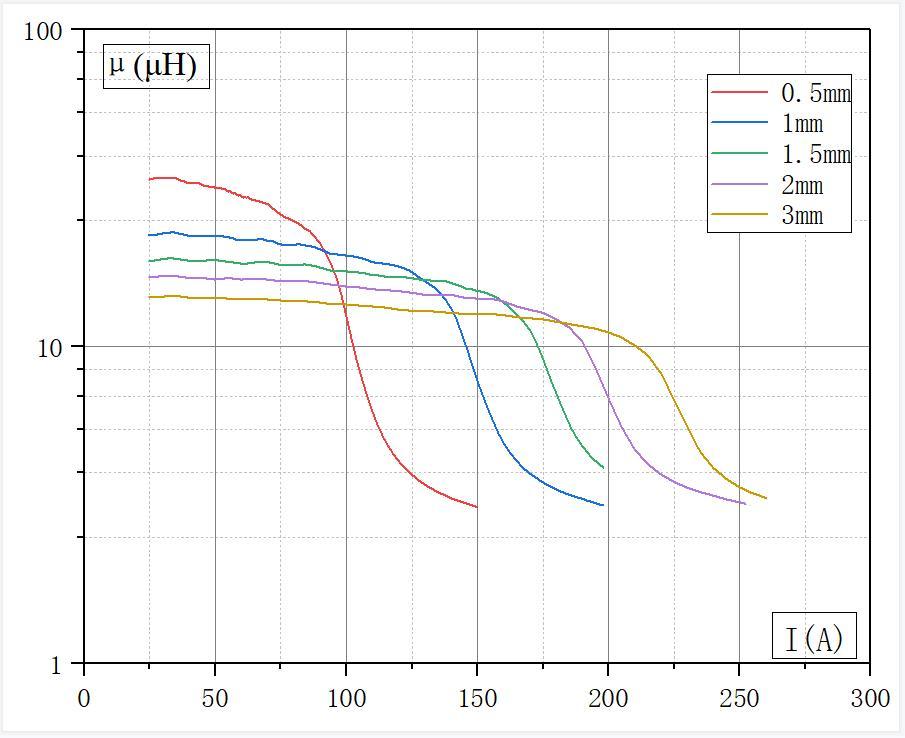

DC-bias Propertites Curve of JCCC Series Cores |
Dynamic Magnetic Flux Loss Curve(Ps-B) of JCCC Series Cores in Different Frequency |
Amorphous Nanocrystalline Cut Cores C Cores E Cores for Solar Inverter Reator Product Specifications：
|
JCHN P/N |
Bare core dimension |
Mean Core Path Length |
Effective |
Window Area |
Window Area Product |
Core Mass （g） |
|||||||||
|
A |
B (mm) |
C (mm) |
D |
E |
F |
Lm (cm) |
Ae (cm2) |
Wa (cm2) |
WaAe (cm4) |
Mass (g) |
|||||
|
JCCC-4 |
9 |
±0.5 |
10 |
32.8 |
15 |
±0.5 |
28.0 |
±1.5 |
50.8 |
±2 |
11.2 |
1.20 |
3.3 |
3.606 |
97 |
|
JCCC-4B |
9 |
±0.5 |
11 |
33 |
15 |
±0.5 |
29.0 |
±1.5 |
51 |
±2 |
11.5 |
1.20 |
3.6 |
3.991 |
99 |
|
JCCC-6.3 |
10 |
±0.5 |
11 |
33 |
20 |
±0.5 |
31.0 |
±1 |
53 |
±2 |
11.8 |
1.78 |
3.6 |
5.912 |
150 |
|
JCCC-8 |
11 |
±0.8 |
13 |
30 |
20 |
±0.5 |
35.0 |
±1 |
52 |
±2 |
11.9 |
1.96 |
3.9 |
6.987 |
167 |
|
JCCC-10 |
11 |
±0.8 |
13 |
40 |
20 |
±0.5 |
35.0 |
±1 |
62 |
±2 |
13.7 |
1.96 |
5.2 |
9.316 |
193 |
|
JCCC-16A |
11 |
±0.8 |
13 |
40 |
25 |
±0.5 |
35.0 |
±1 |
62 |
±2 |
13.7 |
2.45 |
5.2 |
11.645 |
241 |
|
JCCC-16B |
11 |
±0.8 |
13 |
50 |
25 |
±0.5 |
35.0 |
±1 |
72 |
±2 |
15.7 |
2.45 |
6.5 |
14.557 |
276 |
|
JCCC-20 |
11 |
±0.8 |
13 |
50 |
30 |
±0.5 |
35.0 |
±1 |
72 |
±2 |
15.7 |
2.94 |
6.5 |
17.468 |
331 |
|
JCCC-21 |
10 |
±0.8 |
17 |
32 |
40 |
±0.5 |
37.0 |
±1 |
52 |
±2 |
13.6 |
3.56 |
5.4 |
17.720 |
348 |
|
JCCC-25 |
13 |
±0.8 |
15 |
56 |
25 |
±0.5 |
41.0 |
±1 |
82 |
±2 |
17.9 |
2.89 |
8.4 |
22.232 |
373 |
|
JCCC-26 |
16 |
±1 |
40 |
45 |
20 |
±0.5 |
72.0 |
±1 |
77 |
±2 |
21.7 |
2.85 |
18.0 |
46.907 |
443 |
|
JCCC-26B |
16 |
±1 |
20 |
50 |
20 |
±0.5 |
52.0 |
±1 |
82 |
±2 |
18.7 |
2.85 |
10.0 |
26.059 |
382 |
|
JCCC-32 |
13 |
±0.5 |
15 |
56 |
30 |
±0.5 |
41.0 |
±1 |
82 |
±2 |
17.9 |
3.47 |
8.4 |
26.678 |
447 |
|
JCCC-32+ |
13 |
±0.5 |
16 |
58 |
30 |
±0.5 |
42.0 |
±1 |
84 |
±2 |
18.8 |
3.47 |
6.5 |
|
450 |
|
JCCC-33 |
10 |
±0.8 |
20 |
58 |
40 |
±0.5 |
40.0 |
±1 |
78 |
±2 |
18.4 |
3.56 |
11.6 |
37.786 |
470 |
|
JCCC-34 |
15 |
±0.8 |
30 |
60 |
25 |
±0.5 |
60.0 |
±1 |
90 |
±2 |
22.4 |
3.34 |
18.0 |
54.969 |
536 |
|
JCCC-40 |
13 |
±0.8 |
15 |
56 |
35 |
±0.5 |
41.0 |
±1 |
82 |
±2 |
17.9 |
4.05 |
8.4 |
31.124 |
522 |
|
JCCC-50 |
16 |
±1 |
20 |
70 |
25 |
±0.5 |
52.0 |
±1 |
102 |
±2 |
22.7 |
3.56 |
14.0 |
45.604 |
580 |
|
JCCC-63 |
16 |
±1 |
20 |
70 |
30 |
±0.5 |
52.0 |
±1 |
102 |
±3 |
22.7 |
4.27 |
14.0 |
54.724 |
696 |
|
JCCC-64 |
16 |
±1 |
20 |
43 |
45 |
±0.5 |
52.0 |
±1 |
75 |
±2 |
17.3 |
6.41 |
8.6 |
50.425 |
795 |
|
JCCC-65 |
16 |
±1 |
20 |
58 |
45 |
±0.5 |
52.0 |
±1 |
90 |
±2 |
20.3 |
6.41 |
11.6 |
68.015 |
933 |
|
JCCC-70 |
20 |
±1 |
40 |
60 |
30 |
±0.5 |
80.0 |
±1 |
100 |
±2 |
25.9 |
5.34 |
24.0 |
117.266 |
994 |
|
JCCC-80 |
16 |
±1 |
20 |
70 |
40 |
±1 |
52.0 |
±1 |
102 |
±3 |
22.7 |
5.70 |
14.0 |
72.966 |
928 |
|
JCCC-84 |
12 |
±1 |
30 |
60 |
20 |
±1 |
54.0 |
±1 |
84 |
±3 |
21.4 |
2.14 |
18.0 |
35.180 |
329 |
|
JCCC-100 |
16 |
±1 |
20 |
70 |
45 |
±1 |
52.0 |
±1 |
102 |
±3 |
22.7 |
6.41 |
14.0 |
82.086 |
1043 |
|
JCCC-117 |
20 |
±1 |
35 |
77 |
20 |
±1 |
75.0 |
±1 |
117 |
±3 |
28.3 |
3.56 |
27.0 |
87.787 |
724 |
|
JCCC-128 |
22 |
±1 |
35 |
84 |
25 |
±1 |
79.0 |
±1 |
128 |
±4 |
30.4 |
4.90 |
29.4 |
131.680 |
1067 |
|
JCCC-140 |
26 |
±1 |
45 |
88 |
30 |
±1 |
97.0 |
±1 |
140 |
±4 |
34.4 |
6.94 |
39.6 |
251.536 |
1716 |
|
JCCC-140A |
26 |
±1 |
45 |
88 |
40 |
±1 |
97.0 |
±1 |
140 |
±4 |
34.4 |
9.26 |
39.6 |
335.382 |
2287 |
|
JCCC-168S |
20.4 |
±0.5 |
30 |
154.2 |
20 |
±1 |
70.8 |
±1 |
195 |
±4 |
43.2 |
3.63 |
46.3 |
153.701 |
1127 |
