Customized EV EMI Filter Assembly
On the basis of nanocrystalline cores, JCHN developed integrated LC filter circuit designs combine with capacitance to solve the electrical equipment conduction or radiation problem that caused in EMl testing.The integrated designs make the volume of these assemblies smaller and install easier.
Typical Application:
Can use in integrated filtering assembly for battery cable fixing base of electrical motor controller on new energy vehicle; fast charging cable fixing base integrated filter assembly and 0BC, DC-DC or nanocrystalline common mode filter inductance, magnetic cores, differential mode filtering magnetic cores for Motor Ports.
Performance Characteristic：
- Excellent temperature property
- Customized design according to client's require
- Integrated Design for smaller volume and easy installation
Typical Filter Circuits：
|

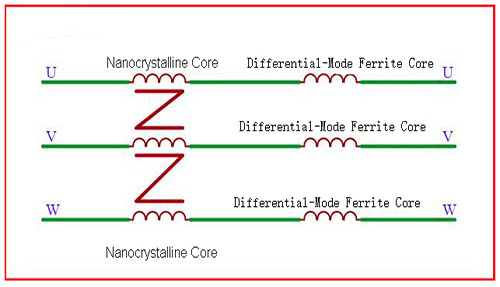

3-phase Filter Circuit |
Positive and Negative Poles Busbar Filter Circuit |

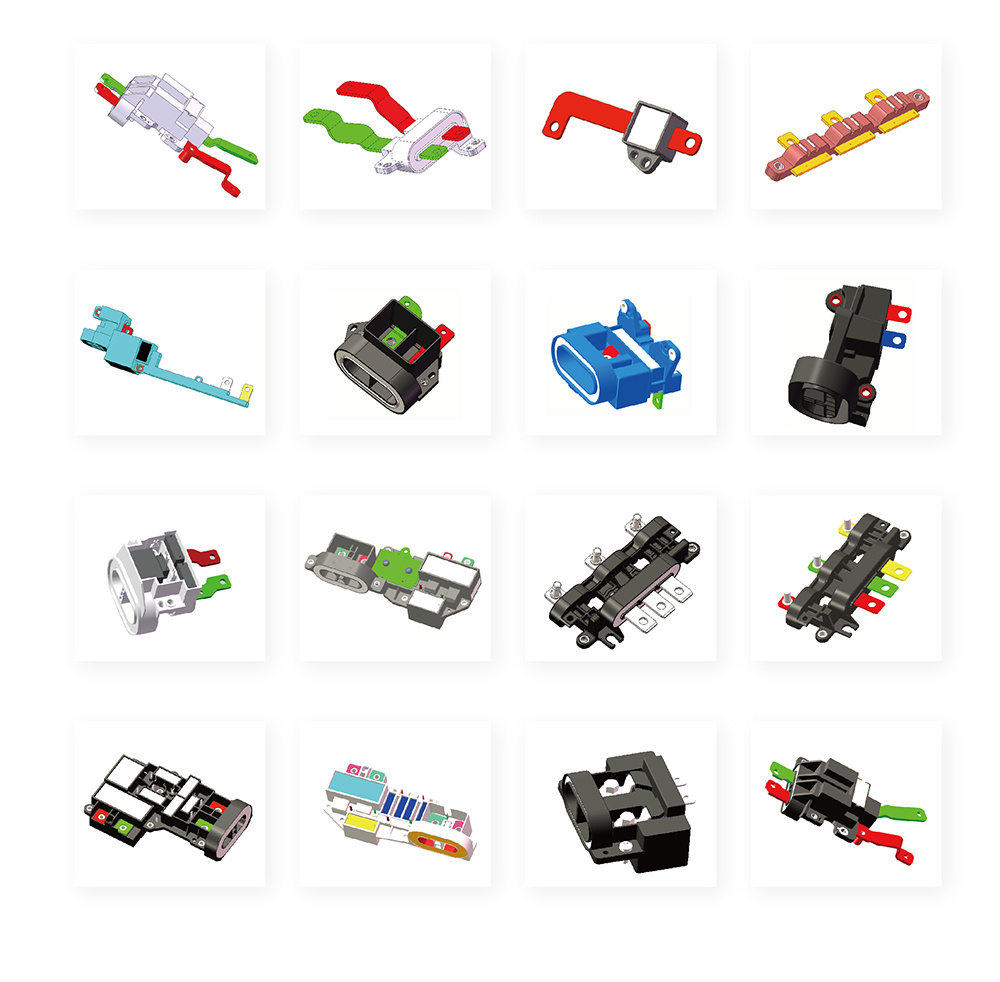

Filter Assembly Designs：
Key words:
common mode filter inductance
differential mode filtering magnetic cores
fast charging cable fixing base
