High-frequency Noise Suppression Filter Nanocrystalline Magnetic Cores
The JCHF series of High-frequency Noise Suppression Filter Nanocrystalline Magnetic Cores that use new nanocrystalline material strip improved the high frequency(HF>100kHz) attenuation compare to the JC series nanocrystalline cores and ferrite cores.The JCHF series core enables a innovative design for high-frequency noise suppression filter, with smaller volume and higher performance for the future application.

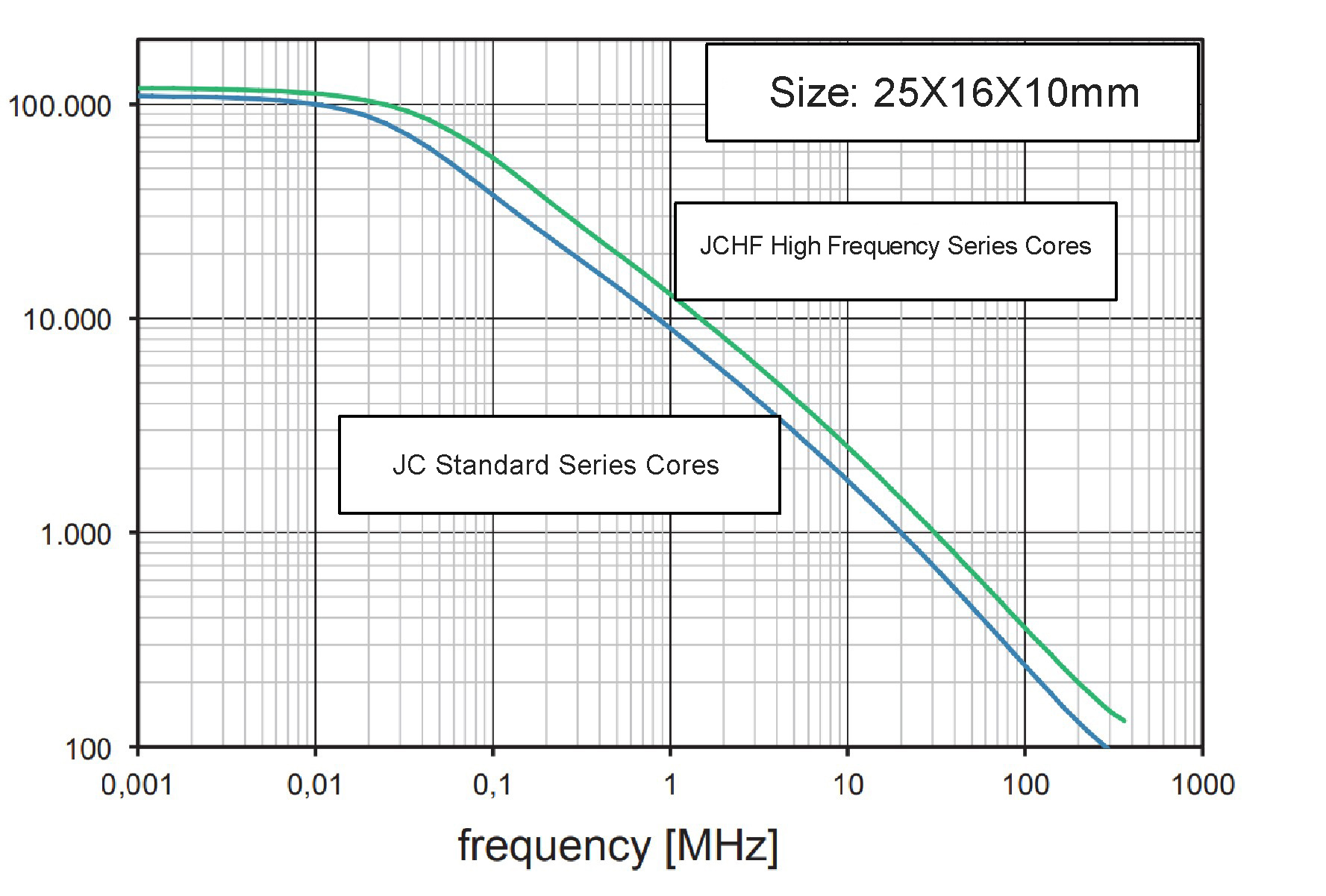

JC Standard Series Cores &JCHF High Frequency Series Cores performance curves comparison
 |
 |
Products Specification：
|
JCHF Serial |
Core Dimension OD×ID×HT |
AL [µH] @100 kHz |
Icm [A] @10 (100) kHz |
||
|
Standard JC Series |
JCHF High-frequency Series |
Standard JC Series |
JCHF High-frequency Series |
||
|
JCHF-2008-B01 |
20×12.5×8 |
13.6 |
20 |
0.3（0.5） |
0.3（0.45） |
|
JCHF-2510A-B01 |
25×16×10 |
15.5 |
24 |
0.3（0.65） |
0.3（0.6） |
|
JCHF-3010-B01 |
30×20×10 |
14 |
22 |
0.4（0.75） |
0.4（0.70） |
|
JCHF-3015-B01 |
30×20×15 |
20 |
32 |
0.4（0.75） |
0.4（0.70） |
|
JCHF-4015B-B01 |
40×32×15 |
11.1 |
17.5 |
0.6（1.0） |
0.6（0.9） |
|
JCHF-4015A-B01 |
40×25×15 |
23.1 |
36 |
0.5（1.0） |
0.5（0.9） |
|
JCHF-4515-B01 |
45×30×15 |
20.3 |
32 |
0.6（1.2） |
0.6（1.1） |
|
JCHF-5020-B01 |
50×40×20 |
14 |
22.5 |
1.0（2.0） |
1.0（1.8） |
Note: 0ther customized designs are available according to client's requires.
